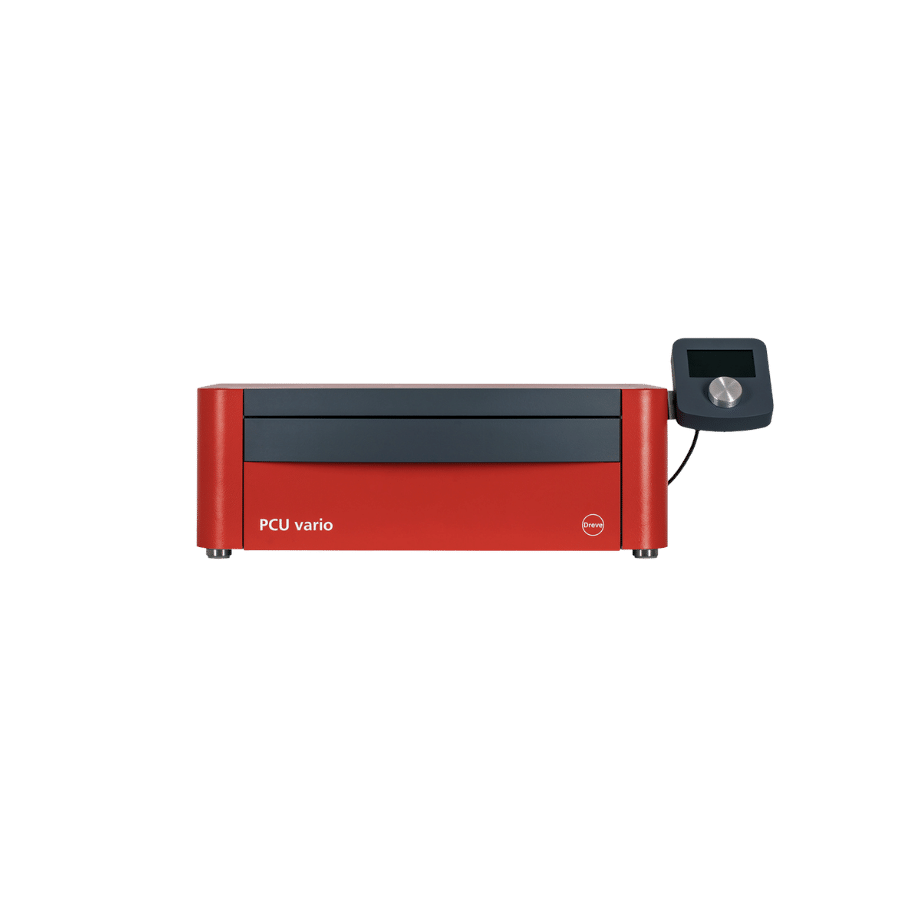

PCU vario 160
PCU vario 160 - Image 2

PCU vario 160

$13,515.78

←  Return to 3D Shop

High-capacity LED post-curing chamber with nitrogen and vacuum options. Chamber unit only; requires the PCU vario control panel.

The PCU vario 160 is Dreve’s high-capacity LED post-curing chamber for 3D-printed parts. Cure under nitrogen or vacuum for biocompatible results without an inhibition layer.

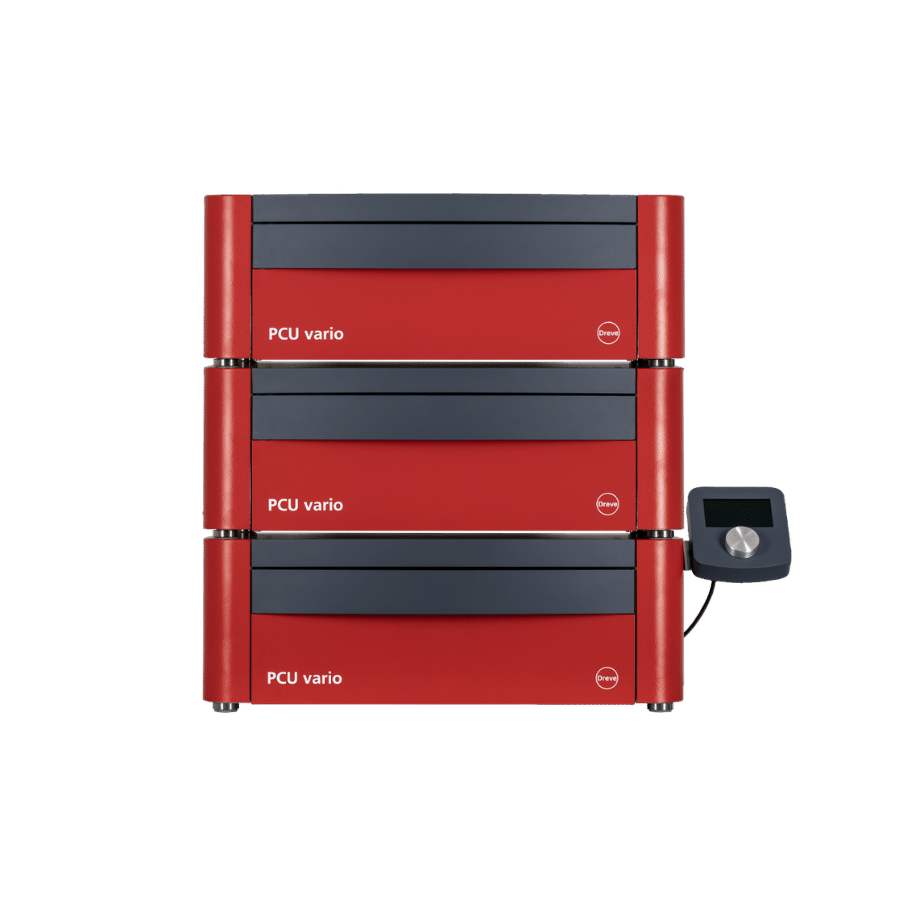

This is the chamber (box unit) only. It runs from the PCU vario Control Panel (4319UI), and one control panel can run up to three chambers. Add the Vacuum Module (4319V) for vacuum curing.

Why labs choose it

  • Large chamber for full platforms of parts
  • Nitrogen and vacuum atmospheres for inhibition-layer-free curing
  • Modular: up to 3 curing chambers on a single control module
  • Open system with 30 freely programmable memory locations
  • Logging and monitoring of process parameters

Specifications

Chamber (H × W × D) 80 × 420 × 270 mm
Power 100–240 V / 50–60 Hz, 500 W
Dimensions (H × W × D) 240 × 660 × 410 mm
Weight approx. 38 kg

Part of the EXACTA Future digital workflow, qualified by Dreve: print, wash, cure, and thermoform in-house, all from one supplier.
